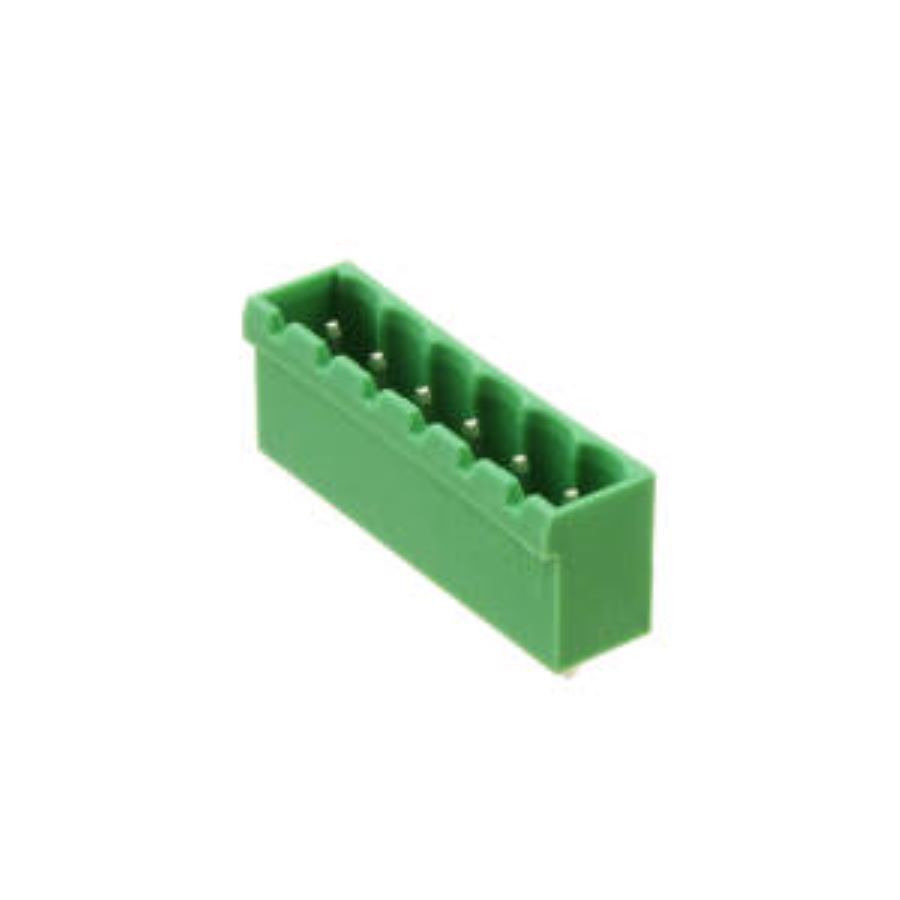

1755778
Manufacturer:
Phoenix Contact
Mfr.Part #:
1755778
Datasheet:
Description:
Terminal Blocks Through Hole 6 5.08 mm 12 A 300 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 32.48 mm |
| Width | 32.48 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Height | 15.9 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 8.6 mm |
| RoHS | Compliant |
| Lead Pitch | 5.08 mm |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 5.08 mm |
| Current | 12 A |
| Current Rating | 12 A |
| Max Current Rating | 12 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CB, CSA, UL, VDE, cULus |
| Orientation | Straight |
| Color | Green |
| Gender | Male |
| Number of Contacts | 6 |
| Number of Poles | 6 |
| Connector Type | Plug |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Number of Positions Per Level | 6 |
| Number of Levels | 1 |
| Housing Color | Green |
| Connection Method | Plug |
| Current Rating (IEC) | 12 A |
| Voltage Rating (IEC) | 250 V |
Stock: 28
Distributors
pcbx
pcbxUnit Price$0.91930
Ext.Price$0.91930
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.91930 | $0.91930 |
| 10 | $0.74246 | $7.42460 |
| 25 | $0.68048 | $17.01200 |
| 50 | $0.62368 | $31.18400 |
| 100 | $0.57162 | $57.16200 |
| 300 | $0.54496 | $163.48800 |
| 500 | $0.51953 | $259.76500 |
| 1000 | $0.49121 | $491.21000 |
